CHM-860 SMT High Speed Automatic 6 Head Led Chip Smd Mounting Machine For Smt
ABOUT US
Charmhigh carries SMD pick and place machines for all types of SMT PCB assembly, from prototyping to high-volume production, with specialized pick and place machines for high mix SMT assembly, circuit board assembly lines with frequent job changeovers, and LED assembly. All pick and place machines are supported by our in-house technical staff.
Whether you are looking for a fully automated pick and place machine or one of our specialty options, Charmhigh can provide a high-quality machine for your application and lifetime equipment support from our in-house technical staff.
| CHM-860 Specifications | |
| Dimensions | 1320mm(L)×1440mm(W)×1530mm(H) |
| Weight | 1100kg |
| Power Supply | AC220V (50Hz, single phase), 3kW |
| Air Supply | 0.5MPa ~0.7MPa |
| Vacuum Generation | Japan PISCO vacuum generator |

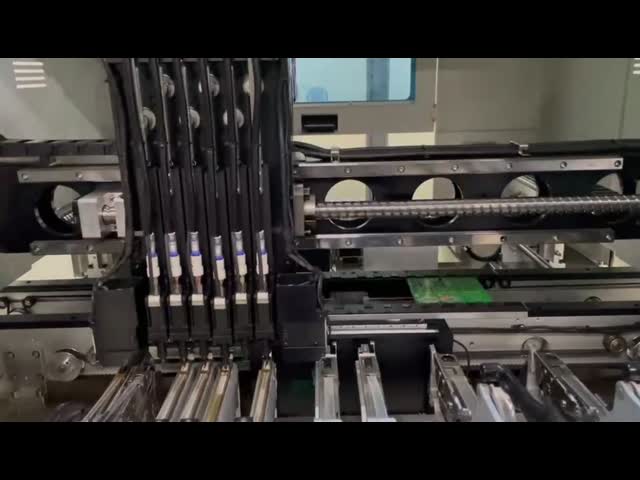

| Mounting Head Quantity | 6 |
| Mounting Speed | 28000cph (optimal) IPC9850:20000cph |
| Mounting Accuracy | ±50μm CPK≥1.0(XY) |
| Control Accuracy | 4μm |
| Component Height | 12mm |
| Component Type | 0201/0402/0603～5050/SOT/SOP/QFP/QFN/BGA, etc. (resistor/capacitor/diode/triode/LED/IC, etc.) |
| PCB Thickness | 0.6mm~3.5mm |
| PCB Size | 400mm(L)×350mm(W) (standard); 800mm(L)×350mm(W) (optional) |
| PCB Conveying | 3-section-rail automatic conveying, PCB support |
| Nozzle Change | Automatic nozzle change (31-hole nozzle library) |
| Control System | Built-in industrial computer (Windows 7) equipped with monitor, keyboard, and mouse |
| Drive System | X&Y axis driven by Panasonic A6 servo motors (Y axis by double motors); adopting flexible S-curve acceleration and deceleration |
| Transmission System | X&Y axis adopting TBI ground ball screw and HIWIN linear guide (Y axis with double screws) |
| Feeding System | 60 NXT 8mm standard feeder stacks (also suitable for IC tray and stick feeder) |
| Vision System | Fly camera×6 (component size applicable: 16mm×16mm); IC camera×1 (component size applicable: 36mm×36mm); Mark camera×2 |
